Product Description

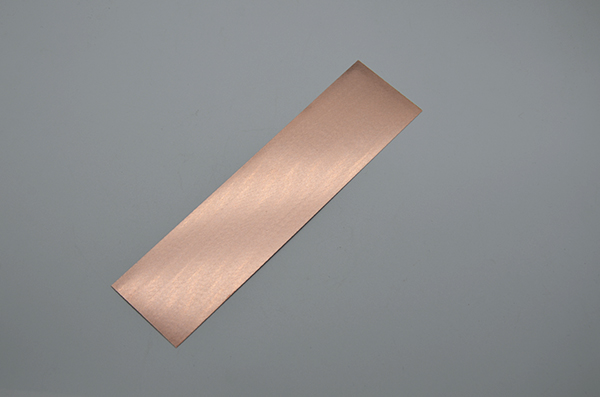

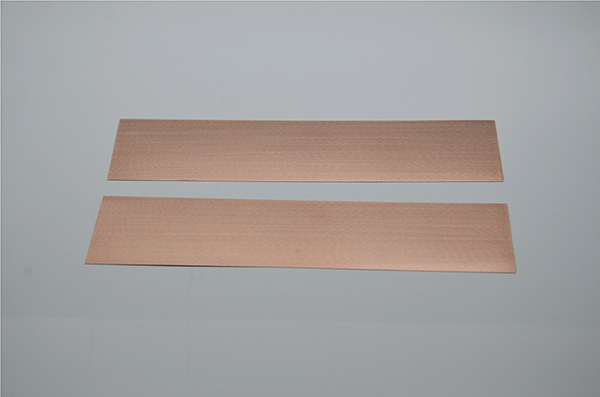

0.1mm Tungsten Copper Foil Sheet

Tungsten copper refers to tungsten and copper composed of false alloy material, copper content is usually 10%-50%, because metal copper at extremely high temperatures can absorb a lot of heat, reduce the surface temperature of the material, so the alloy is also known as metal sweat material. 0.1mm Tungsten Copper Foil Sheet is mainly made of powder metallurgy and processed by rolling, cutting, polishing, etc. It has the advantages of good ductility and softness, high temperature strength, excellent electrical and thermal conductivity, good breaking performance, strong high temperature resistance, good electric ablation resistance and high pressure resistance. It is suitable for electrical contact materials and electrode processing materials. 0.1mm Tungsten Copper Foil Sheet can be used as the electrical contact material of high voltage switching appliances and circuit breakers with different current types, and can be widely used in the electrical industry, semiconductor and integrated circuit industry, aerospace, sports equipment, metallurgical processing, mechanical manufacturing and medical fields.

0.1mm Tungsten Copper Foil Sheet specifications

Grade	W60Cu40,W70Cu30,W75Cu25,W90Cu10
Technique	Rolling,Sintering,Forging,Annealing,Cutting,Machining,
Thickness	0.1mm
Width	10mm-300mm
Density	14.5g/cm³
Electric Conductivity	27-54%
Shape	Round,Square,Rectangle
Surface	Polishing,Alkali Cleaning,Grinding,Ground,Black Oxide, etc.
Standard	ASTM B702,GB
Certification	ISO9001
