Product Description

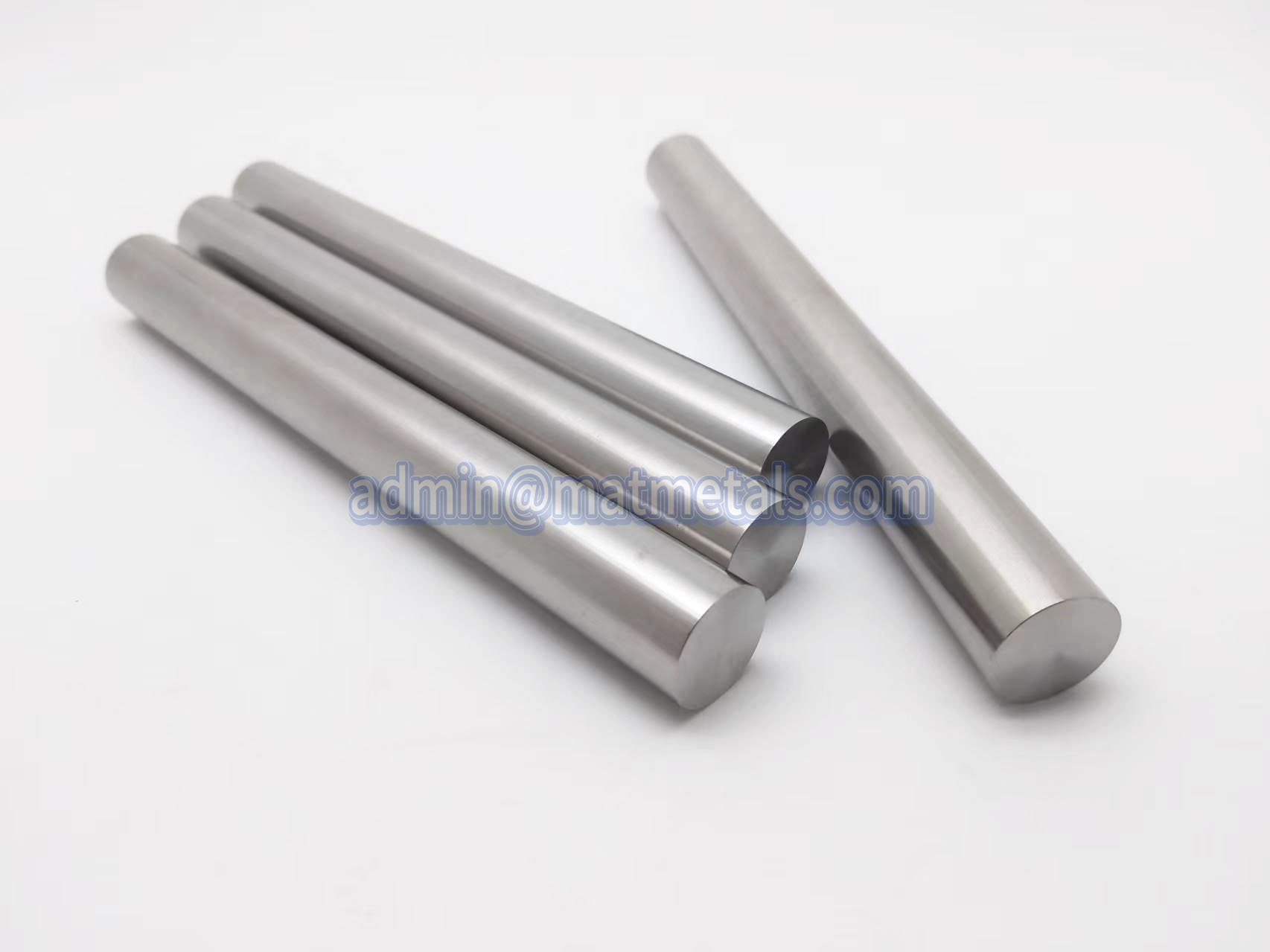

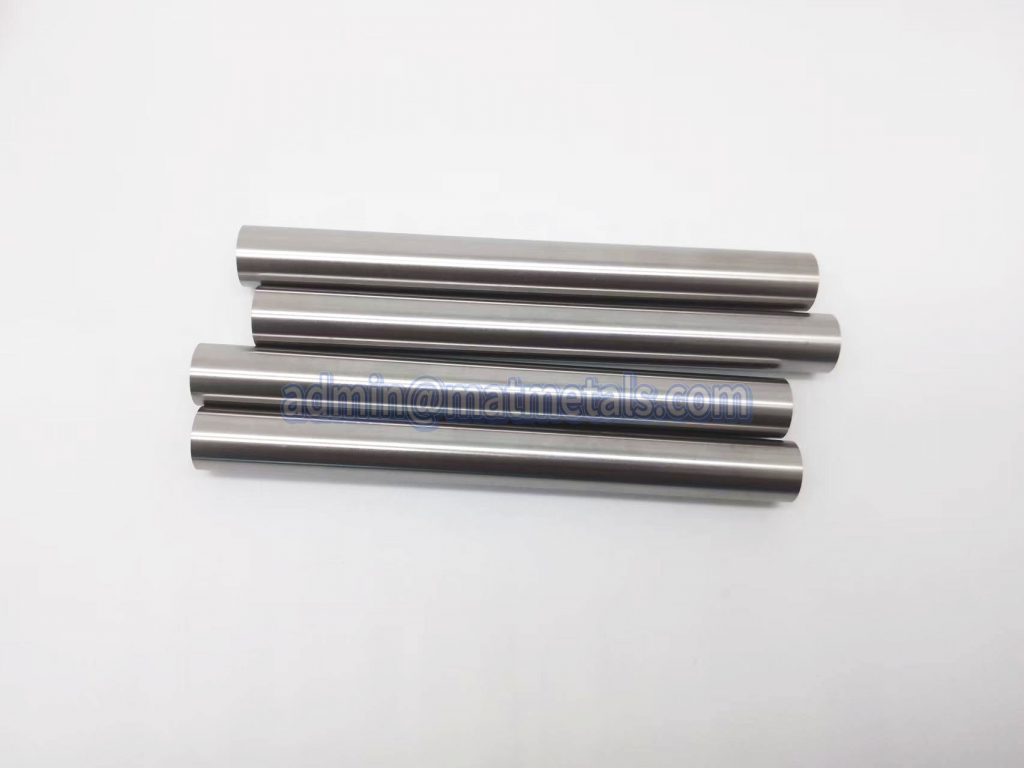

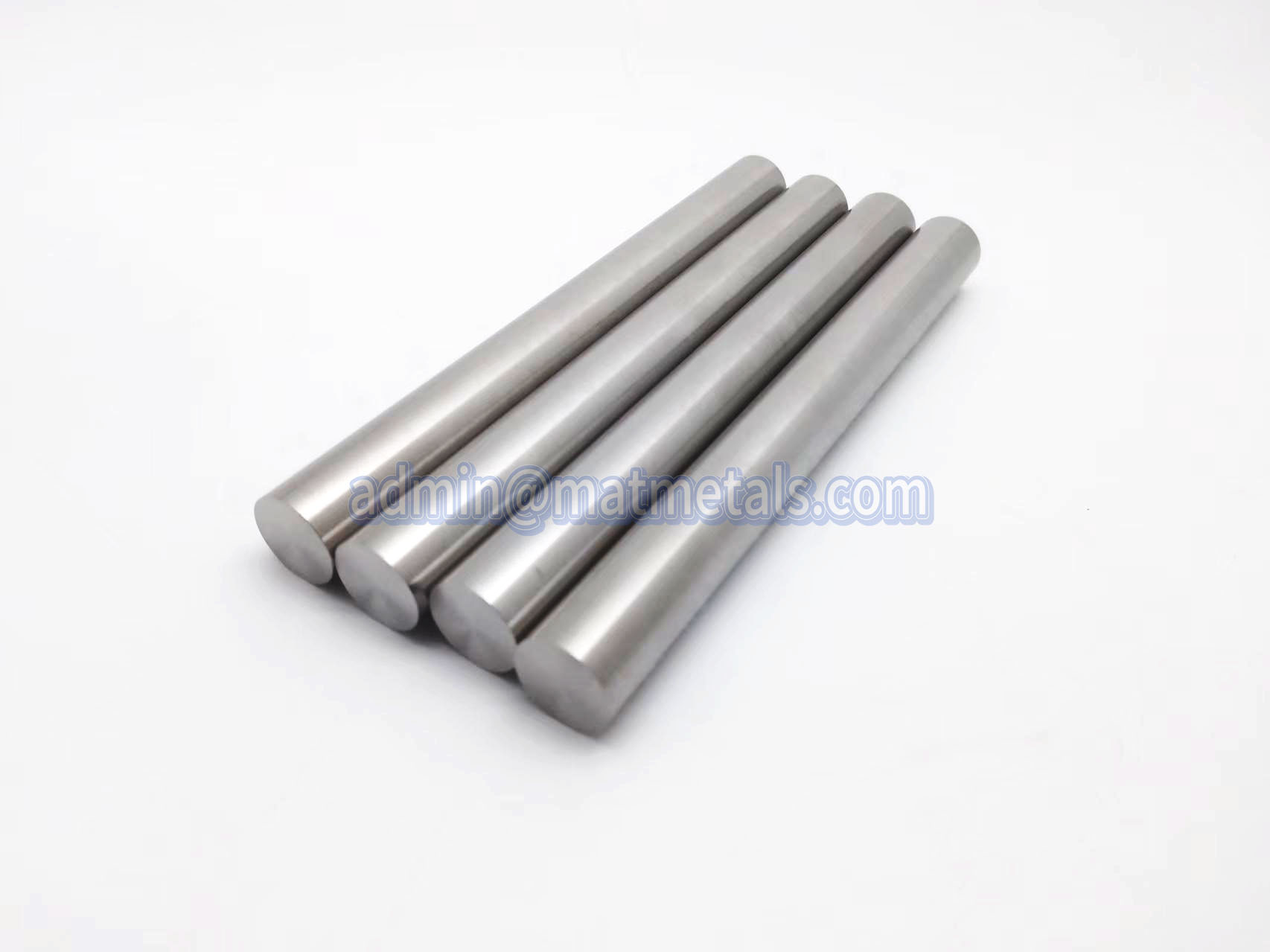

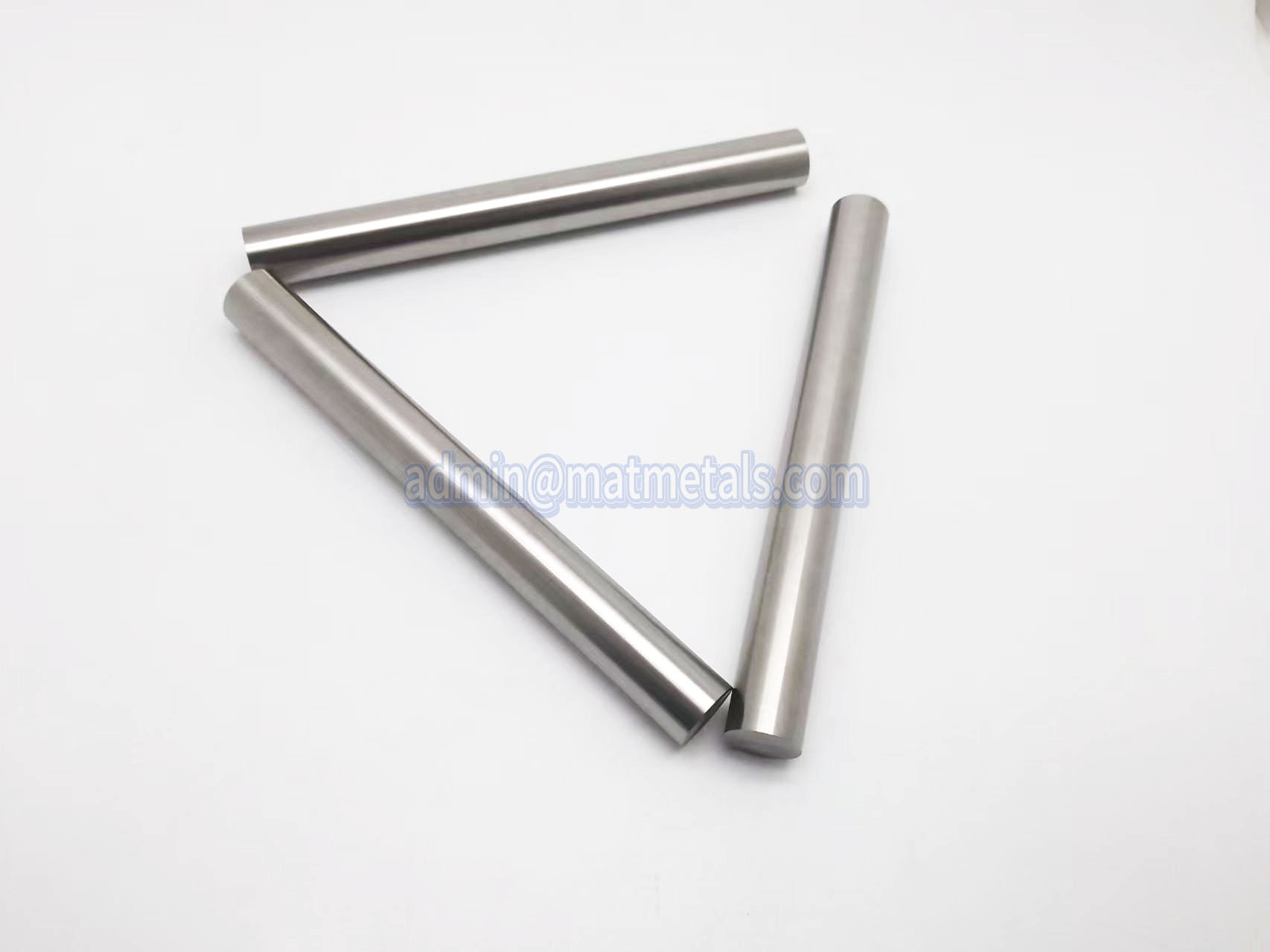

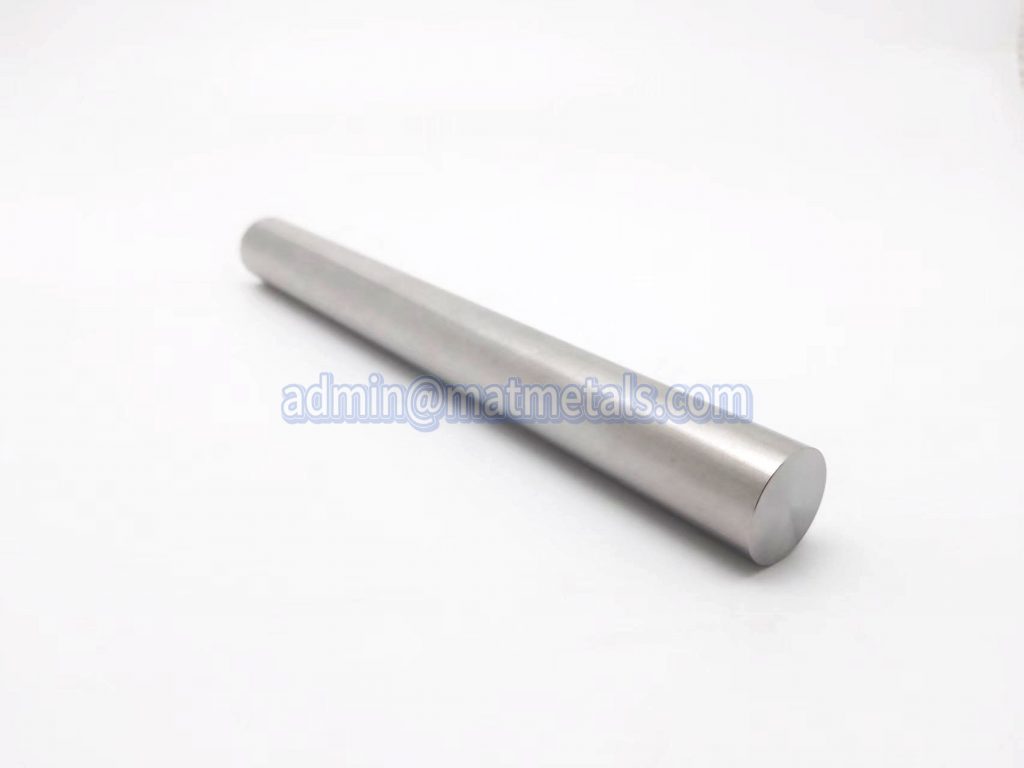

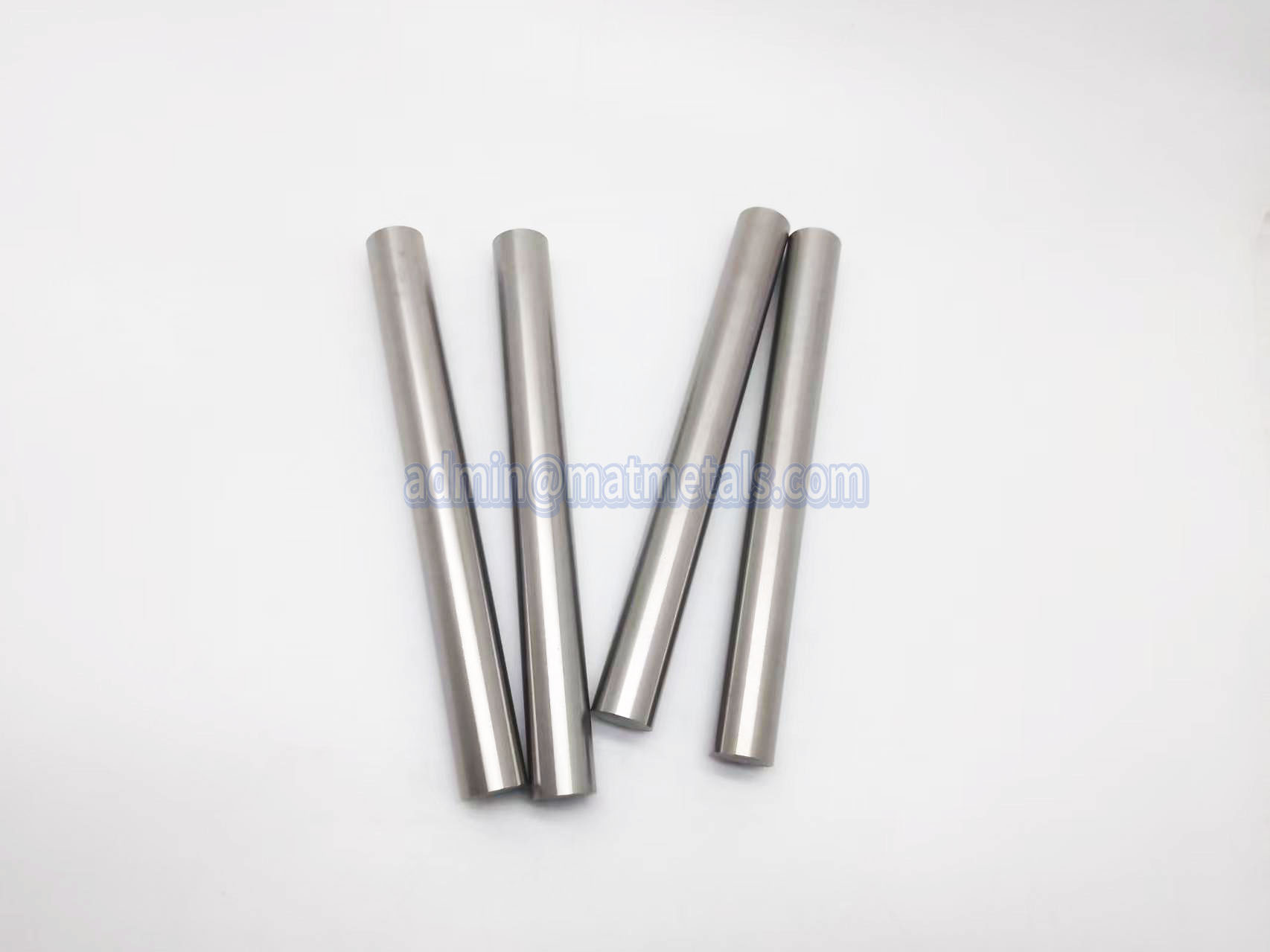

90 WNiFe Rod is a tungsten heavy alloy rod containing approximately 90% tungsten, with nickel and iron as binder elements. As a W-Ni-Fe tungsten alloy material, it combines high density, good mechanical strength, and improved machinability compared with pure tungsten.
MatMetals supplies Tungsten Heavy Alloy Rods in customized diameters, lengths, and surface conditions to meet different industrial component requirements.
Material Composition
90 WNiFe is a tungsten heavy alloy mainly composed of tungsten, nickel, and iron. The tungsten phase provides high density, while the nickel-iron binder phase improves toughness and machinability.
| Element | Content |
|---|---|
| Tungsten (W) | Approx. 90 wt.% |
| Nickel (Ni) | Balance |
| Iron (Fe) | Balance |
90WNiFe Rod Specifications
| Item | Specification |
|---|---|
| Grade | 90WNiFe (W90Ni7Fe3) |
| Material | Tungsten Nickel Iron Alloy |
| Standard | GB/T 26038-2023, ASTM B777 |
| Density | 16.85–17.25 g/cm³ |
| Hardness | ≥32 HRC |
| Tensile Strength | ≥800 MPa |
| Elongation | ≥10% |
| Manufacturing Process | Powder Metallurgy, Sintering |
| Diameter | Customized |
| Length | Customized |
Why Choose 90 WNiFe Rod?
High Density for Compact Weight Requirements
Tungsten heavy alloy provides a density of approximately 17 g/cm³, allowing designers to achieve higher weight within limited space. It is often selected for components requiring concentrated mass and compact dimensions.
Better Machinability Than Pure Tungsten
Compared with pure tungsten, WNiFe alloy contains a nickel-iron binder phase that improves toughness and machining capability. This makes it easier to process into rods and precision components.
Custom Dimensions Available
Different applications may require specific diameters, lengths, tolerances, and surface finishes. MatMetals provides customized 90 WNiFe rods according to customer drawings or technical requirements.
Applications of 90 WNiFe Rod
W90Ni7Fe3 rods are used in applications where high density, dimensional stability, and machinability are required, including:
- Counterweights and balancing components
- Radiation shielding parts
- Precision machined components
- Industrial tooling components
- Aerospace and engineering applications
- Customized tungsten alloy parts
Custom 90 WNiFe Rod Service
MatMetals provides customized tungsten heavy alloy rods based on customer requirements. Available options include different diameters, lengths, machining processes, and surface finishes.
Customers can provide drawings or specifications for evaluation and customized production.
