Tungsten Copper Application Detail

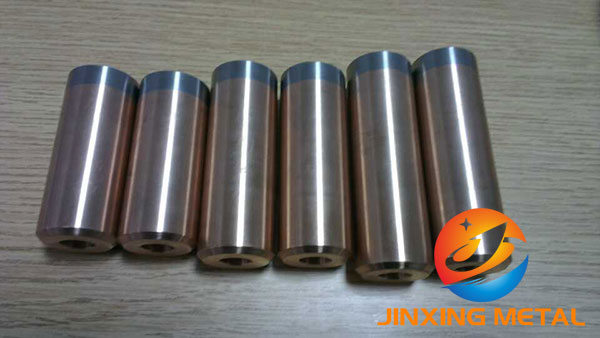

Tungsten Copper Application
Quick Overview
In Stock
Tungsten copper alloys are used where the combination of high heat resistance, high electrical and/or thermal conductivity, and low thermal expansion are needed. Some of the applications are in electric resistance welding, as electrical contacts, and as heat sinks. As contact material the alloy is resistant to erosion by electric arc. WCu alloys are also used in electrodes for electrical discharge machining and electrochemical machining.
1.Heat Sinks
The CuW75 tungsten copper alloy is used extensively in thermal mounting plates, chip carriers, flanges, and frames for high-power electronic devices. As a tungsten copper material, it's a composite, so both the thermal advantages of copper and the very low expansion characteristics of tungsten can be utilized.
The combination of tungsten & copper materials results in thermal expansion characteristics similar to those of silicone carbide, aluminum oxide, and beryllium oxide, used as chips and substrates. Because of tungsten copper's thermal conductivity and expansion characteristics, Tungsten copper alloy works well in densely packed circuits.
2.Resistance Welding
The high physical and mechanical properties, as well as the thermal and electrical conductivity, of refractory metal composites make tungsten copper alloy very suitable for die inserts and electrode facings, flash and butt welding dies, and hot upsetting. They can also solve heat balance problems.
3.Electrical Contacts
Electrical contacts are subjected to extreme mechanical and thermal stresses during operation. For fractions of a second, temperatures rise to several thousand degrees as a result of the arcing. Our tungsten coppermaterials are used owing to their unique physical properties.
4.EDM and ECM
Tungsten copper alloys are used worldwide for EDM (Electrical Discharge Machining) and ECM (Electrochemical Machining) electrodes. All material is manufactured by the press, sinter, and infiltrate process. Virgin tungsten powders are used, resulting in a consistent homogeneous material giving high and even burning rates. Tungsten copper is used in plunger/sinker applications where intricate definition is required, especially in tungsten carbide.
5.Spaceflight field
Tungsten copper alloy performance excellent as heat resistant, ablate resistant, high intensity, high density and self cooling, it is widely used in spaceflight field.
6. Electrodes for Spark Erosion
Our WCu electrodes are best suitable for EDM machining of those materials.
Types of product: rods, tubes and plates.
