Product Description
Solid Cylinder Grade 5 Ti6Al4V Titanium Alloy Pellets ASTM B348
Titanium alloy pellet has poor stamping property and the thermoplasticity is good. Titanium rods can be welded into various forms, and the strength of the welded joint can reach 90% of the strength of the base metal. Good machining performance, need to use cemented carbide tools, large amount of cutting, slow speed, full cooling. It has good corrosion resistance and thermal stability. Titanium rod is a kind of titanium alloy.
Titanium Alloy Pellets Specification：
|
Product name |
99.995% 5N Titanium Evaporation Material/Titanium Target/Titanium Pellet 6mmx6mm in Stock |
|
Standard |
ASTMB863 |
|
Material |
Pure Titanium Titanium Alloy |
|
Grade |
Gr1/ Gr2 /Gr3/ Gr4/ Gr5/Gr7/Gr9/Gr12 |
|
Shape |
Spool Coil Straight |
|
Surface |
Black Polished Pickling |
|
Size |
Φ3 *3 / Φ6 *6 / Φ3 *6 / Φ6 *8/ Φ8 *8 *10 *10, etc, or customized according to customer requirements. |
|
Density |
4.51g/cm3 |
|
Condition |
Soft |
|
Tolerance |
Customer |

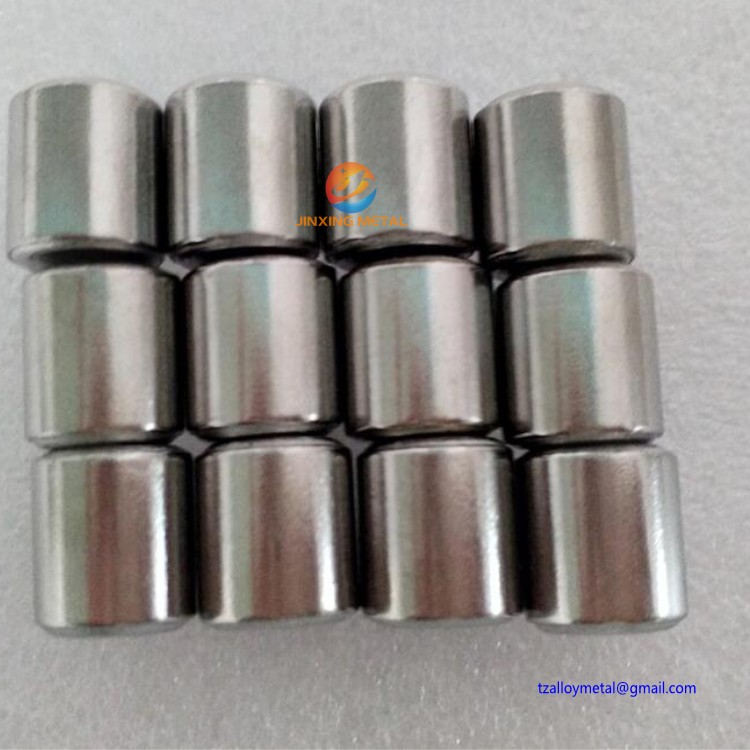

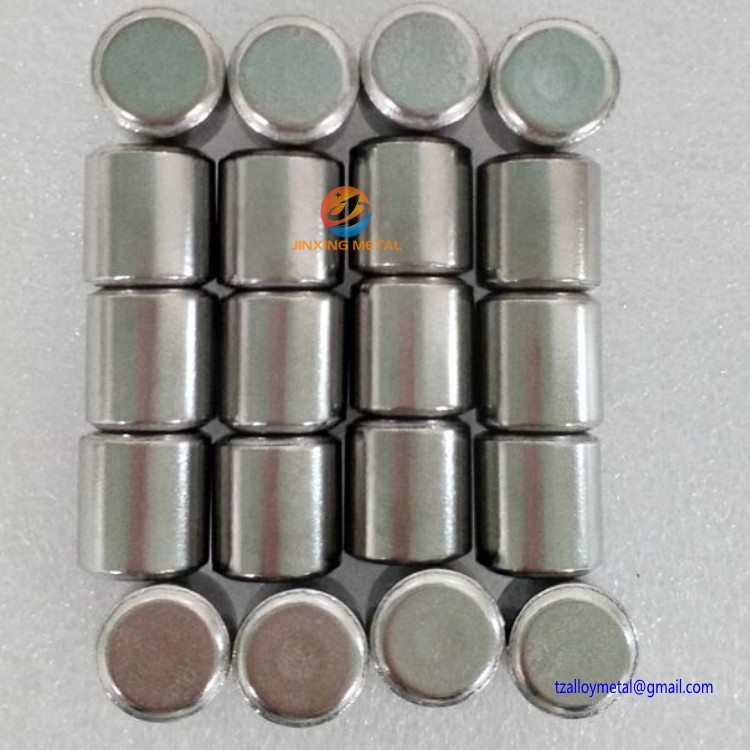

Titanium Alloy Pellets Picture:
Tensile Requirements of Titanium Alloy Pellets
|
Grade |
Tensile Strength (min) |
Yield strength 0.2%Offset |
Elongation in 2in.Or 50mm % (min) |
||
|
Min |
|||||
|
KSI |
MPA |
KSI |
MPA |
||
|
Gr1 |
35 |
240 |
20 |
138 |
20 |
|
Gr2 |
50 |
345 |
40 |
275 |
18 |
|
Gr3 |
65 |
450 |
55 |
380 |
18 |
|
Gr5 |
130 |
895 |
120 |
828 |
10 |
|
Gr7 |
50 |
345 |
40 |
275 |
18 |
|
Gr12 |
70 |
483 |
50 |
345 |
18 |
Application of Titanium Alloy Pellets
Titanium alloy pellet has good biocompatibility and human compatibility, light weight, corrosion resistance, tasteless and harmless. Therefore, it is widely used in medical instruments, artificial joints and bone trauma fixation systems. Titanium is used in the manufacture of implantable medical devices, artificial limbs or the treatment of HIV.
