Product Description

Size available :
– Flat tantalum targets, rectangular tantalum target):
1mm up to 12.7mm Thickness x Width up to 600mm x Length up to 1800mm (.040" to 0.50" thick x width up to 23.62" x length up to 70");

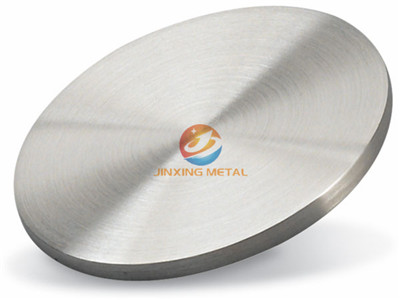

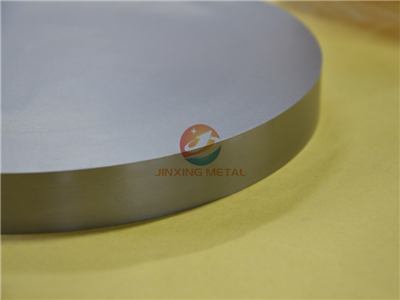

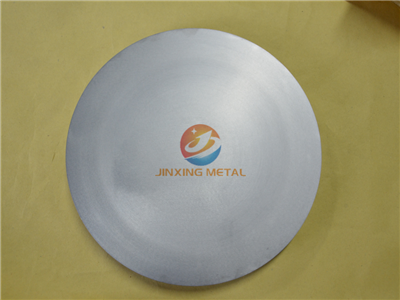

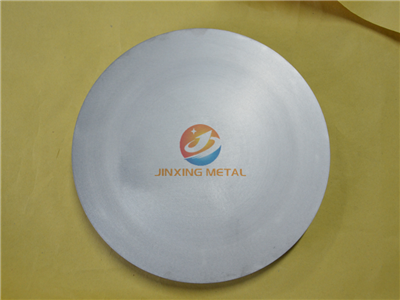

– CircularTantalum targets :
25mm up to 650mm Diameter x 3mm up to 25.4mm Thickness (1" to 25" diameter x 0.1181" to 1" thickness)

The material is available as follows :
– R05200, unalloyed tantalum, electron-beam furnace or vacuum-arc melt, or both,
– R05400, unalloyed tantalum, powder-metallurgy consolidation,
– R05255, tantalum alloy, 90 % tantalum, 10 % tungsten, electron-beam furnace or vacuum-arc melt, or both,
– R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten, electron-beam furnace or vacuum-arc melt, or both, and
– R05240, tantalum alloy, 60 % tantalum, 40 % nobium, electron-beam furnace or vacuum-arc melt.

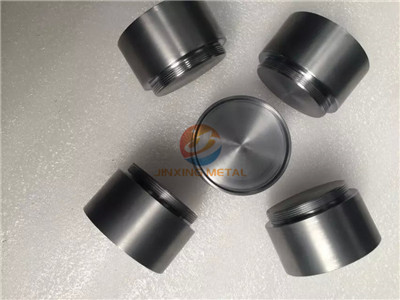

Typical Size & Application: The popular geometries of tantalum sputtering target are available with both planar sputtering targets and rotatable sputtering targets, such as tantalum circular, tantalum rectangular, tantalum ring, tantalum tube, tantalum cylinder(cylindrical targets) and tantalum conicity, etc., we can meet your unique requirements on tantalum sputtering targets no matter in density, purity, homogeneity or in geometry of the sputtering target for the thin film industry.
