Product Description
Cobalt Chromium Tungsten Alloy bushing of Introdution
Cobalt Chromium Tungsten Alloy bushing and sleeve are the advantaged products for us , we have produced more than thousands specifications and all of them are produced upon customer’s drawing .
There are two kind of process in our company , PM products and castings . They have each advantages and stellite alloy are applied in the industries as nuclear, petrochemistry, battery , food etc. Regular products include valve balls, seat , bearings , sleeves, pump parts pears , gears , batteries dies , nozzles and cutters .
Cobalt Chromium Tungsten Alloy bushing of Product Features
1. High temperature resistance
The strength keeps stable up to 800℃ and it can even momentarily used at 1200℃.
2. Wear resistance
Due mainly to the unique inherent characteristics of the hard carbide phase dispersed in a
CoCr alloy matrix, it has exceptional wear and galling resistance.
3. Corrosion resistance
This exellent and lovely property allows this kind of material parts to be used in oil&gas, slurry,
acid liquid and any other mediums.
Cobalt Chromium Tungsten Alloy bushing Typical Application
Materail JX-Co3, JX-Co6, JX-Co20
JX-3 equal to the material stellite 3 ( stellite brand belong to Kennametal)
JX-6 equal to the material stellite 6( stellite brand belong to Kennametal)
JX-3 equal to the material stellite 3
JX-6 equal to the material stellite 6
Reference : Stellite3, stellite6, stellite20 ( stellite brand belong to Kennametal)
|
Material Choose |
Typical Application |
Process |
|
JX- 6 |
Steam and chemical valve seat , oil and gas pump sleeve, ,butterfly valve bushing ,hot-dip galvanized production line used bushing etc. |
Powder metallurgy & investment casting |
|
JX-3 |
Pump sleeve ,rotary ring , valve seats |
Powder metallurgy & investment casting |
|
JX-12 |
Extrusion die , hot impact die and saw teeth |
Powder metallurgy |
|
JX-100 |
Extrusion die , hot-impact die and saw teeth |
Powder metallurgy |
|
JX-20 |
Pump sleeves , rotary rings , bearing sleeves , valve balls |
Powder metallurgy |

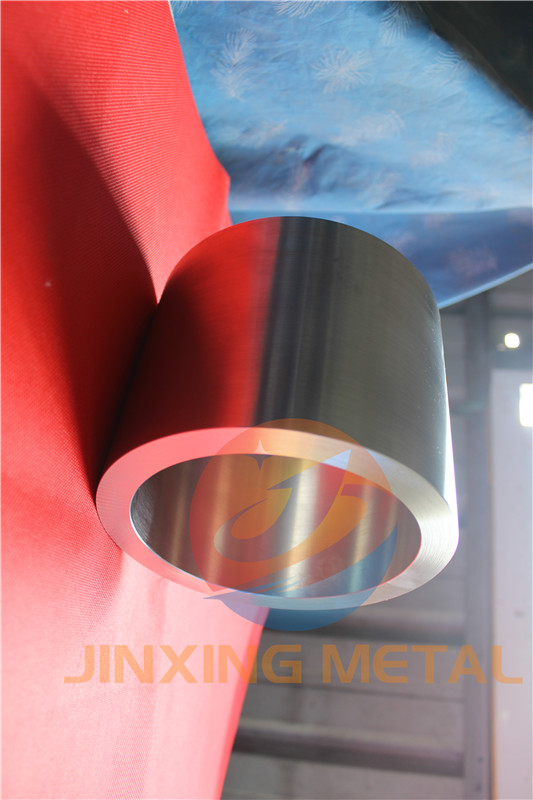

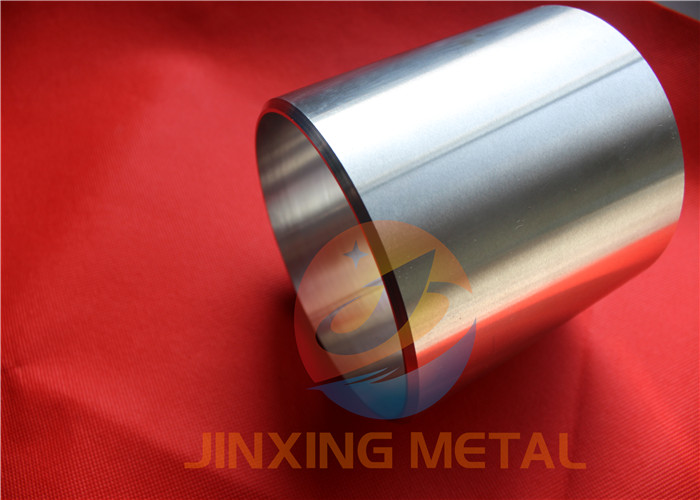

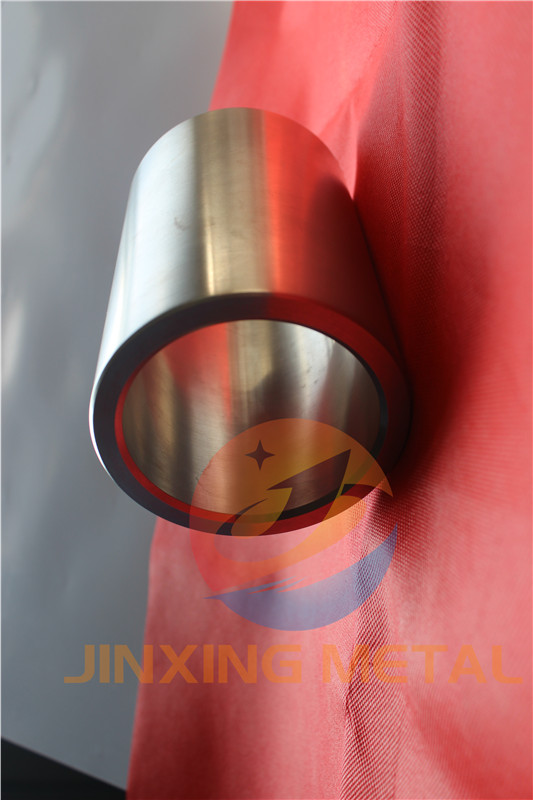

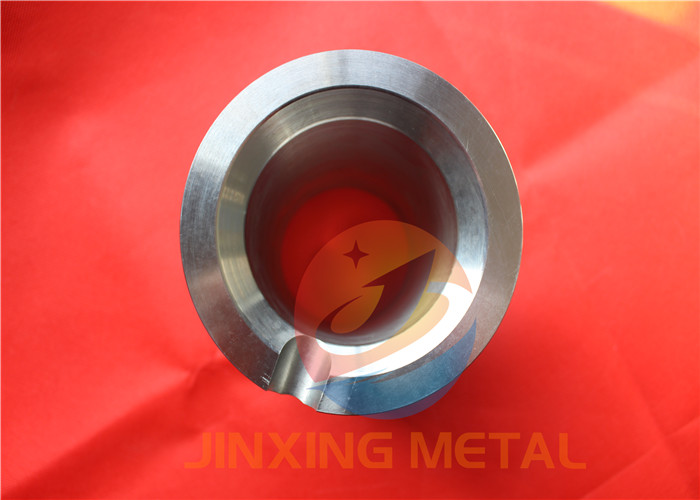

Details of Cobalt Chromium Tungsten Alloy bushing and sleeve
|
Material : |
Stellite –Grade 3.6.12 |
|
Process : |
Powder Metallurgy , it is short for PM and investment casting |
|
Hardness: |
38-50HRC |
|
Density : |
8.4 g/cm ³ |
|
Size : |
Diameter 8-500mm and maxium length 500mm |
|
Properties : |
Wear and corrosion resistance, high temperature resistance |
|
Application : |
Oil and gas equipment such as pump , valve , other environment need wear and corrosion resistance parts |
|
Instructions : |
Drawing made upon cutomers request |
|
Tolerance control : |
turning or grinding surface , tolerance upon drawing |
|
Production lead time |
Normal order 15-25 days |
|
Production capacity : |
20,000pcs one month. |
|
Package : |
carton or wooden case , pallet for export |
Please leave your information to get the latest quotation and product catalogue!
