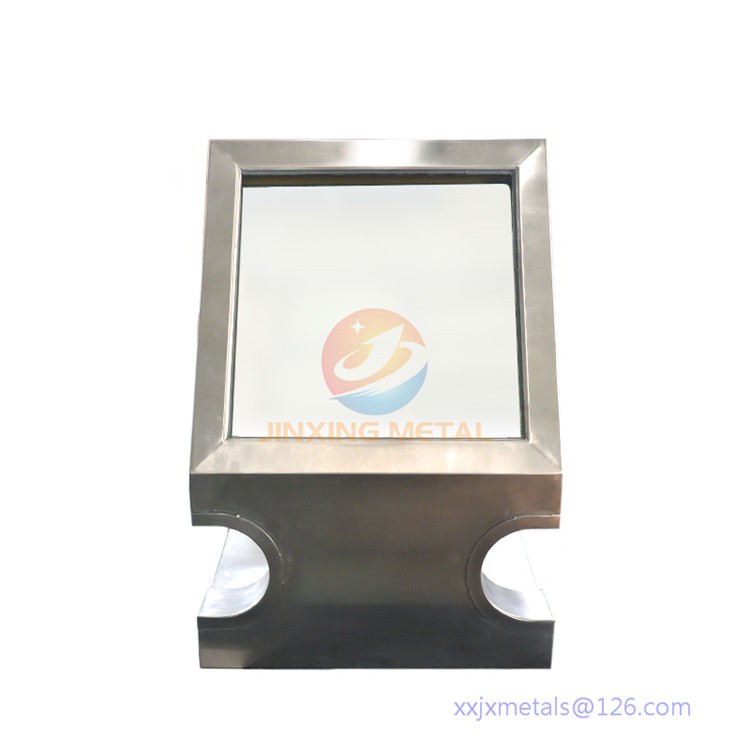

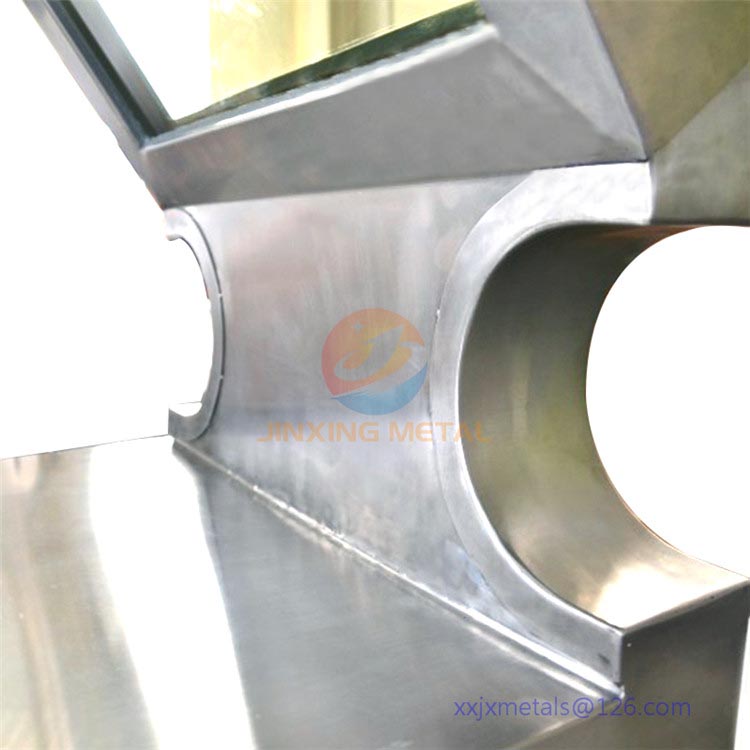

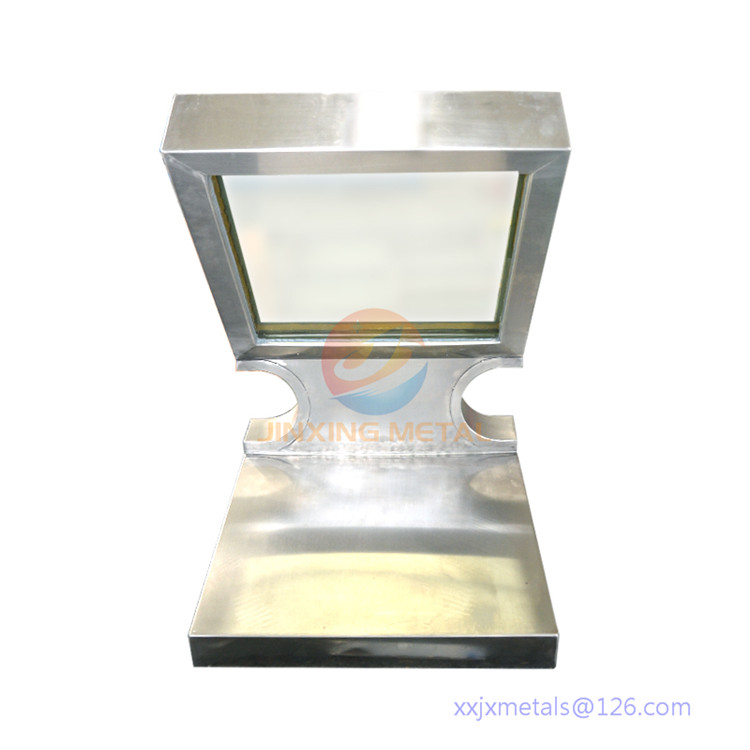

L Block Table Top Shield

Product Description

　　L Block Table Top Shield of Product Description

　　This shield is designed for facilities that prepare and dispense high activity 131I therapy doses. The shield offers excellent protection from beta and gamma radiation and has a fully shielded floor. The lead glass is 3.5 inches           thick to shield out the high energy gamma photons from this radionuclide.

　　The series of products are high-quality and complete specifications.

     L Block Table Top Shield of show

L Block Table Top Shield of Size

　　PET L-Shield Block

　　Beta Gamma ‘L’ Block Shield

　　For facilities that use both Beta emitting and Gamma emitting nuclides

　　LSB-01

　　Dimension 300*550*500mm

　　Lead Glass size：500*500*90mm

　　Pb equivalent：Front 50mmPb

　　Bottom 30mmPb

　　LSB-02

　　Dimensions: 280 mm x 350mm x 450mm (width x Length x height)

　　Material: Lead

　　Outside material: Stainless steel

　　Lead glass thickness: 2 cm

　　Lead equivalent thickness: 1 cm Pb

　　Body thickness: 2cm

　　Window is placed at an angle of 60˚

　　Other size or Customized

　　1. Size :500*550*280 Glass size: 350*350*100 Pb:30mmPb 2. Size: 360*430*600 Glass size: 350*350*90 Pb30/15mmPb

　　3. Size: 255*255*397 Glass size: 208*238*15 Pb:6mmPb

　　Different specification can be customized
