Product Description
Grade 5 Seamless Titanium Alloy Pipes Ti6Al4V
Titanium alloy pipe have a series of advantages, such as good mechanical and mechanical property, high specific strength, low density, non-magnetic, high temperature resistance, low coefficient of thermal expansion, good corrosion resistance, low temperature without brittleness. Titanium alloy, represented by ti6al4v, is an alloy of other elements based on titanium.
Chemical Composition of Titanium Alloy Pipes
|
Grade |
N |
C |
H |
Fe |
O |
Al |
V |
Pa |
Mo |
Ni |
Ti |
|
Gr1 |
0.03 |
0.08 |
0.015 |
0.2 |
0.18 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr2 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr3 |
0.05 |
0.08 |
0.015 |
0.3 |
0.35 |
/ |
/ |
/ |
/ |
/ |
bal |
|
Gr5 |
0.05 |
0.08 |
0.015 |
0.4 |
0.2 |
5.5~6.75 |
3.5~4.5 |
/ |
/ |
/ |
bal |
|
Gr7 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
0.12~0.25 |
/ |
/ |
bal |
|
Gr9 |
0.03 |
0.08 |
0.015 |
0.25 |
0.15 |
2.5~3.5 |
2.0~3.0 |
/ |
/ |
/ |
bal |
|
Gr12 |
0.03 |
0.08 |
0.015 |
0.3 |
0.25 |
/ |
/ |
/ |
0.2~0.4 |
0.6~0.9 |
bal |
Tensile Requirements of Titanium Alloy Pipes
|
Grade |
Tensile Strength (min) |
Yield strength 0.2%Offset |
Elongation in 2in.Or 50mm % (min) |
||
|
Min |
|||||
|
KSI |
MPA |
KSI |
MPA |
||
|
Gr1 |
35 |
240 |
20 |
138 |
20 |
|
Gr2 |
50 |
345 |
40 |
275 |
18 |
|
Gr3 |
65 |
450 |
55 |
380 |
18 |
|
Gr5 |
130 |
895 |
120 |
828 |
10 |
|
Gr7 |
50 |
345 |
40 |
275 |
18 |
|
Gr12 |
70 |
483 |
50 |
345 |
18 |

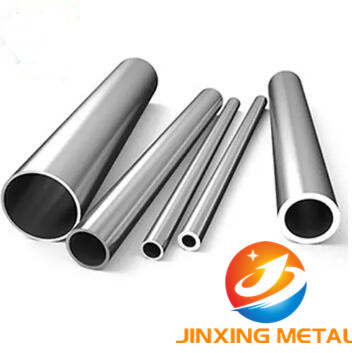

Titanium Alloy Pipes Picture:
Application of Titanium Alloy Pipes
Titanium alloy pipes are used for manufacturing medical devices, prostheses or auxiliary treatment equipment implanted in human body. Medical titanium has excellent corrosion resistance, elastic modulus close to natural bone, and excellent biocompatibility. Medical pure titanium is single-phase tissue and cannot be strengthened by heat treatment.
