Product Description

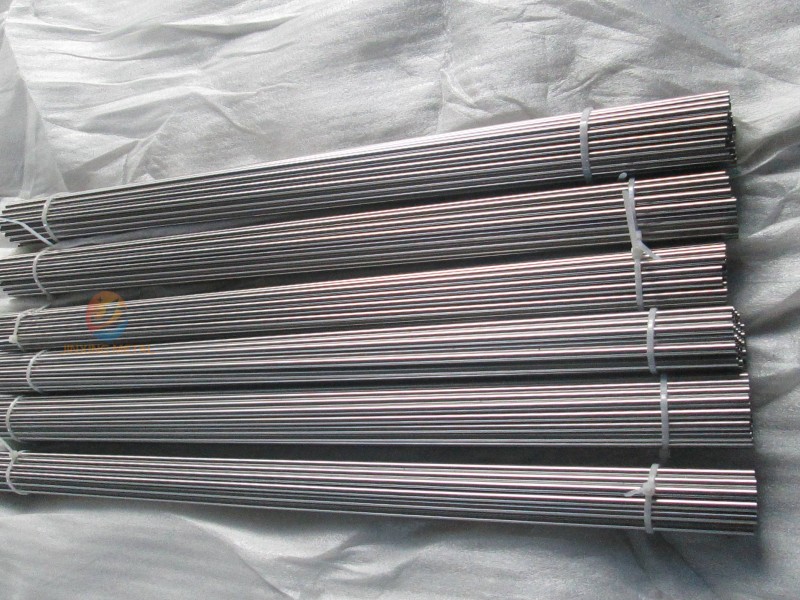

Ag W Silver Tungsten Alloy electrode Contacts of Detailed Description
Material:Ag And WColor:Silver
Composition:Ag15-50%,W85-50 %Size:Upon Drawing
Main Properties:High ConductivityProcess:Powder Metallurgy
Surface:BrightTolerance:Positive Tolerance
Silver tungsten electrode can also be called silver tungsten rod and silver tungsten bar. Silver tungsten electrode is the alloy of tungsten and silver. Silver and tungsten’s mutual solubility is very low, and this has been the reason why silver tungsten electrode can only be made by powder metallurgy and pressing method.
Silver tungsten electrode owns the properties of high hardness, high arc corrosion resistance, and high fusion welding resistance.
Silver tungsten electrode is widely used in high temperature resistance industry, electronics and microelectronics industry, metallurgy industry. The most popular application of silver tungsten electrodes is to be used as switches.
The specification of sliver tungsten electrodes can be clarified by the content of tungsten and silver. There are AgW30, AgW40, AgW50, AgW55, AgW60, AgW65, AgW70, AgW75, AgW80, and AgW85.
Ag W Silver Tungsten Alloy electrode Contacts of chemical components
|
Brand and NO. |
Chemical Components W% |
Physical Properties |
||||||
|
Ag |
W |
Total Impurities <= |
Density (g/cm³)>= |
Hardness HB >= |
Resistivity (μΩ·㎝) |
Conductivity IACS W% |
Bending Strength Mpa>= |
|
|
AgW30 |
70±1.5 |
Bal. |
0.5 |
11.75 |
75 |
2.3 |
75 |
|
|
AgW40 |
60±1.5 |
Bal. |
0.5 |
12.40 |
85 |
2.6 |
66 |
|
|
AgW50 |
50±2.0 |
Bal. |
0.5 |
13.15 |
105 |
3.0 |
57 |
|
|
AgW55 |
45±2.0 |
Bal. |
0.5 |
13.55 |
115 |
3.2 |
54 |
|
|
AgW60 |
40±2.0 |
Bal. |
0.5 |
14.00 |
125 |
3.4 |
51 |
|
|
AgW65 |
35±2.0 |
Bal. |
0.5 |
14.50 |
135 |
3.6 |
48 |
|
|
AgW70 |
30±2.0 |
Bal. |
0.5 |
14.90 |
150 |
3.8 |
45 |
657 |
|
AgW75 |
25±2.0 |
Bal. |
0.5 |
15.40 |
165 |
4.2 |
41 |
686 |
|
AgW80 |
20±2.0 |
Bal. |
0.5 |
16.10 |
180 |
4.6 |
37 |
726 |
Ag W Silver Tungsten Alloy electrode of physical properties :
Density :11.75-16.10g/cm ²
it depend on the content of tungsten and sliver
Application of sliver tungsten electrode:
Sliver tungsten electrode commonly used as switches, it performs well in AC welding
Used in high temperature resistance industry
Applied for sport equipment
Silver tungsten electrode
Composition W30-85,Ag 15-70%
Because of the mutal solubility of tungsten sliver is too low ,sliver tungsten electrode only can be manufactured by powder metallurgy and pressing method .
The specifications that we can make :
Different size rods, bars , sheet ,plate and some tube
Drawing made electrode and contact .
