Product Description

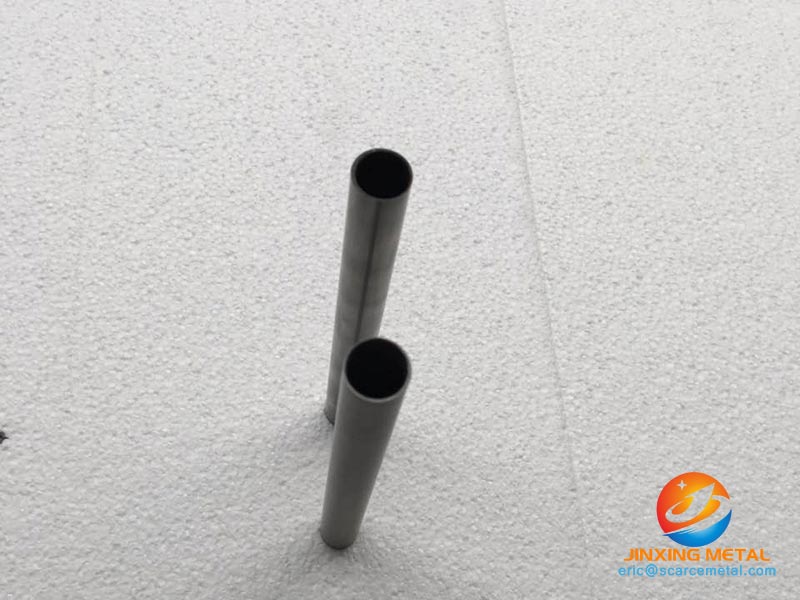

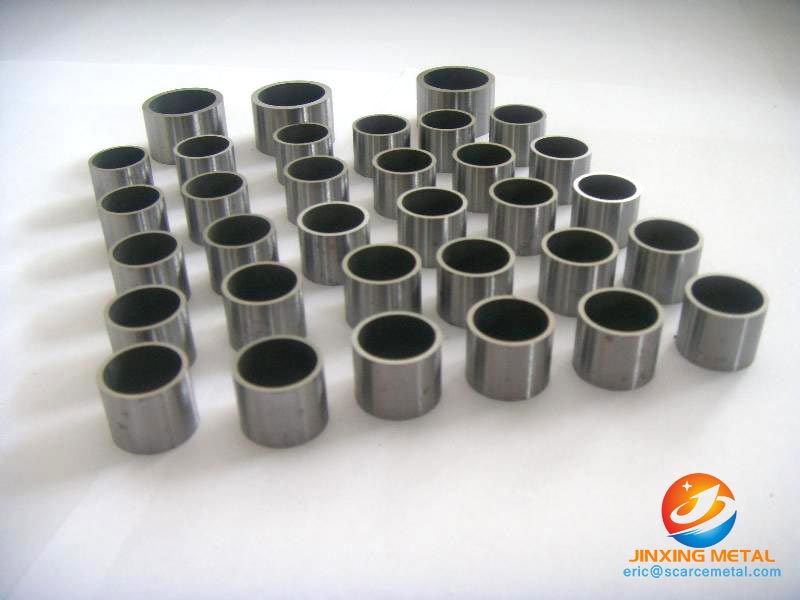

Beryllium Tube
Proudcts£ºBeryllium plate¡¢Beryllium tube, Beryllium sheet, Beryllium foil, Beryllium window for X Ray and Fabricated Beryllium products,
We also supply the Beryllium capillary tube OD2mm,ID1mm,length100mm
Beryllium foil: width 25mm,length 50mm,thickness 0.1-0.3mm,
Molecular Formula
Chemical Composition wt%
|
Be |
Be(min) |
Fe(max) |
Al(max) |
Si(max) |
Cu(max) |
Pb(max) |
Zn(max) |
Ni(max) |
Cr(max) |
Mn(max) |
|
Be-02 |
99 |
0.05 |
0.02 |
0.06 |
0.005 |
0.002 |
0.007 |
0.002 |
0.002 |
0.006 |
|
Be-01 |
98.5 |
0.105 |
0.15 |
0.06 |
0.015 |
0.003 |
0.01 |
0.008 |
0.013 |
0.015 |
|
Be-1 |
98 |
0.25 |
0.25 |
0.10 |
0.005 |
0.025 |
0.025 |
0.020 |
Note : For Be-02, the content of individual impurity is allowed to fluctuate by 50% in case the total of impurities is within 0.11%
Forms available silver- grey beads with size over lump
Packing: Contained in sealed galvanized iron drums with inner kraft paper and plastic bag, The maximum content of each drum is 10 kilograms
Application Materials for beryllium wrought products and alloys .
